The Industry's Favorite Design Software for Dobby Fabrics
Jacquard CAD/CAM Software for Woven Textile Design
With NedGraphics Jacquard Design Software, create complex woven fabric designs with total precision and efficiency. Design, color, estimate usage, simulate woven fabric looks, and send design files straight to the loom.
Combine with the Texcelle software from NedGraphics for unconstrained creativity and textile design versatility. Generate and recolor high-fidelity Jacquard fabric simulations for both internal and external presentations.
Design Jacquard fabrics for apparel, home furnishings, upholstery, terry, ties, chenille, velvet, labels, and more.
Store and edit fabric data, including yarns, weaves, layouts, and loom functions. With support for industry-standard formats, this Jacquard CAD/CAM software streamlines integration for clients using third-party systems.
NedGraphics Jacquard Design Software is the ultimate woven textile design solution for any weaving company. It features a high-quality simulation engine to generate highly realistic virtual samples and includes a True Coloring tool for efficient recoloring.
Key Features

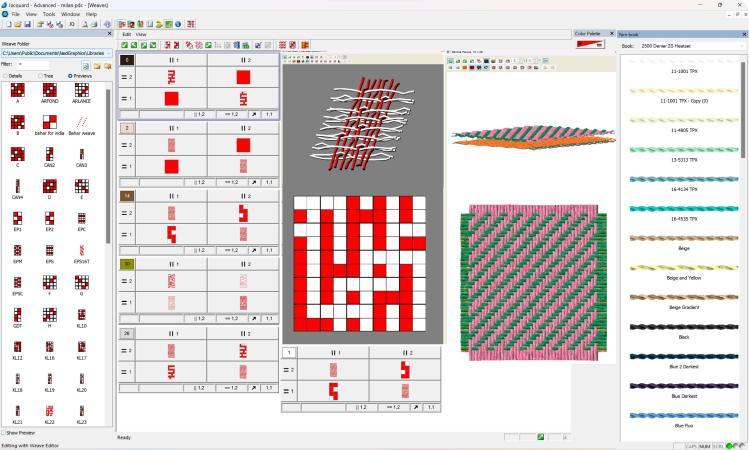

Develop any fabric from simple weaves to
multi-layered structures

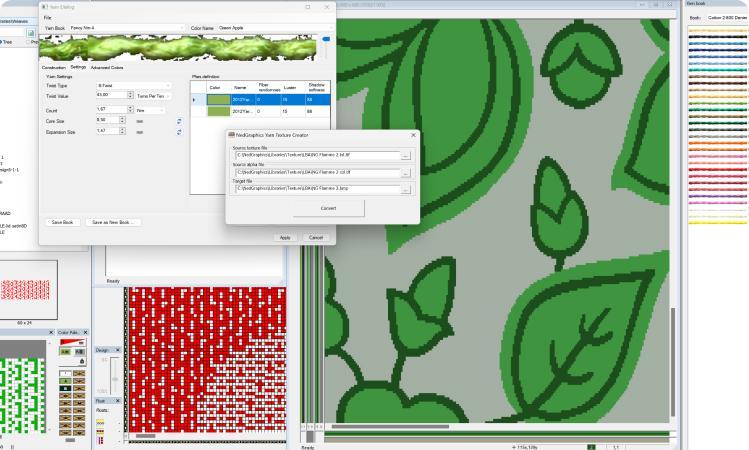

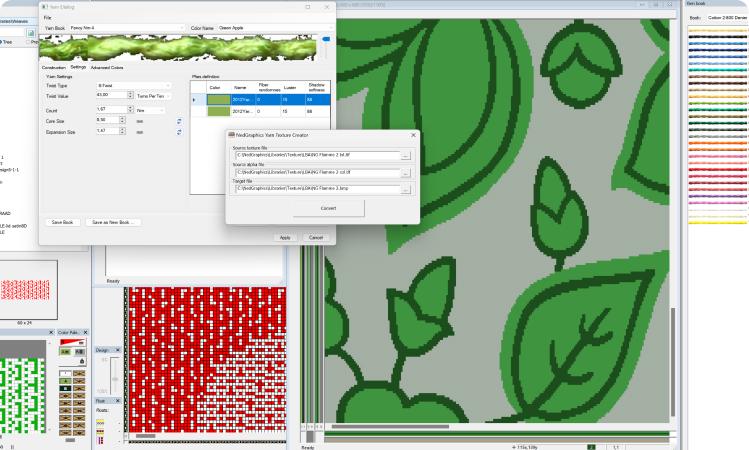

Scan, clean and automatically
generate yarn texture

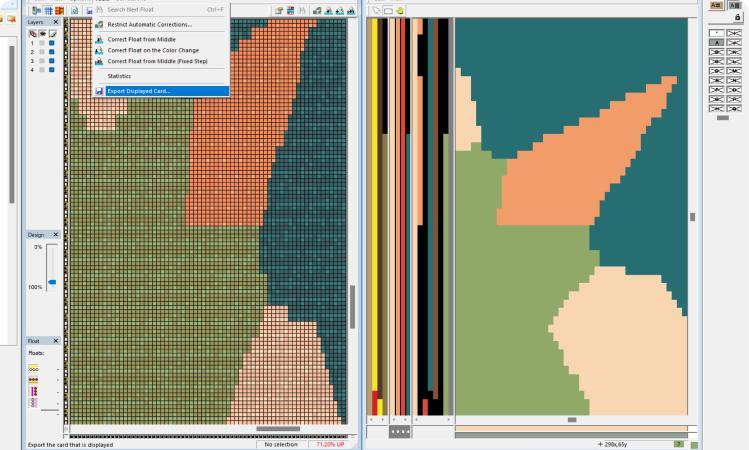

Export card view with
design colors

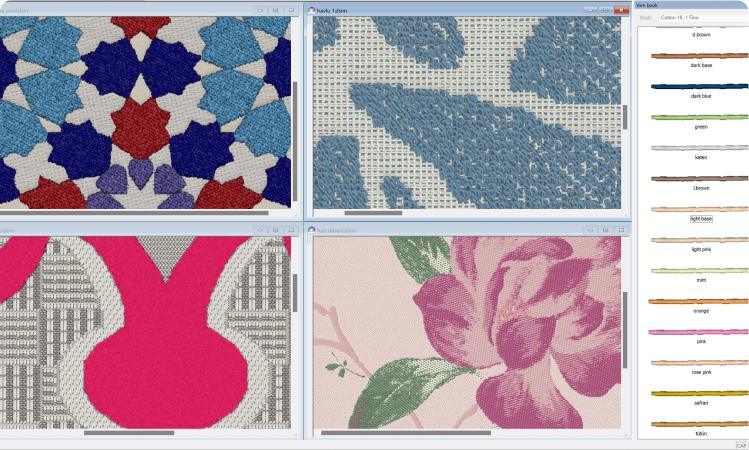

Design for multiple fabrics types:
terry, ties, chenille, velvet, labels, and more
Jacquard Features
NedGraphics Jacquard is available in 3 versions. Select the version best suited for your needs:
| Essentials | Advanced | Premium | |
|---|---|---|---|
|
Basic Drawing Tools
|
 |
|
|
|
Design Cleaning Tools
|
|
|
|
|
Card Import and Editor
|
|
|
|
|
Look Editor and Weave Editor
|
|
|
|
|
Fabric Simulation
|
|
|
|
|
One Machine Conversation Included
|
|
|
|
|
Advanced Drawing Tools
|
 |
|
|
|
High Resolution Fabric Simulation
|
|
|
|
|
Yarn Book Feature
|
|
|
|
|
Simulation Recoloring, Export and Printing
|
|
|
|
|
Simulation Server Included
|
|
|
|
|
Integrated U3M-Powered 3D Viewer
|
|
|
|
|
Full-Repeat 3D Simulation
|
|
|
|
What’s New in
Expand Your Yarn Possibilities with
Bring fully customized yarns created in Gemell YarnEditor directly into Jacquard. The integration enriches Yarn Book by combining existing NedGraphics yarns with customer-created options, giving designers and manufacturers greater freedom to explore distinctive materials and incorporate custom yarns into their production workflows.
Save Directly to
Save your work directly to OPTINEDCloud for a more connected and accessible design workflow. Visit OPTINEDCloud to learn more.
Industries that Rely on Jacquard for Woven Textile Design
Jacquard design software is widely used across industries where complex woven fabrics are essential:
- Home Textiles: Decorative fabrics, upholstery, carpets, and drapery with intricate detail and accuracy.
- Fashion & Apparel: Sophisticated woven patterns for clothing, scarves, and accessories, balancing creativity with production feasibility.
- Automotive & Transportation: Durable, aesthetically refined seat covers, interiors, and technical textiles.
- Industrial & Specialty Manufacturers: Terry, velvet, labels, and other woven products that require high precision and realistic fabric simulation.
Across all these sectors, Jacquard software ensures a seamless connection from design concept to loom—reducing errors and accelerating time to market.
Additional Features & Benefits:
- Visualize your Jacquard fabric and weave structure in real-time.
- Create amazingly realistic woven fabric simulations, replacing physical samples.
- Scan and save your own yarns.
- Easy-to-access libraries for all your weave patterns.
- Automatically generate weft and warp scales from your design.
- Create production data instantly.
- Integrate float checking and correcting (automatic and manual).
- Convert to and from any weaving machine files.
- Convert from compound weave to basic weave and vice versa.
- Support any kind of Jacquard machine format (Bonas, Grosse, Stäubli, etc.) or punching machine.
Schedule a Jacquard Demo
See how NedGraphics Jacquard Design Software can streamline your woven textile design workflow—from concept to loom. Schedule a personalized demo with our team today.
